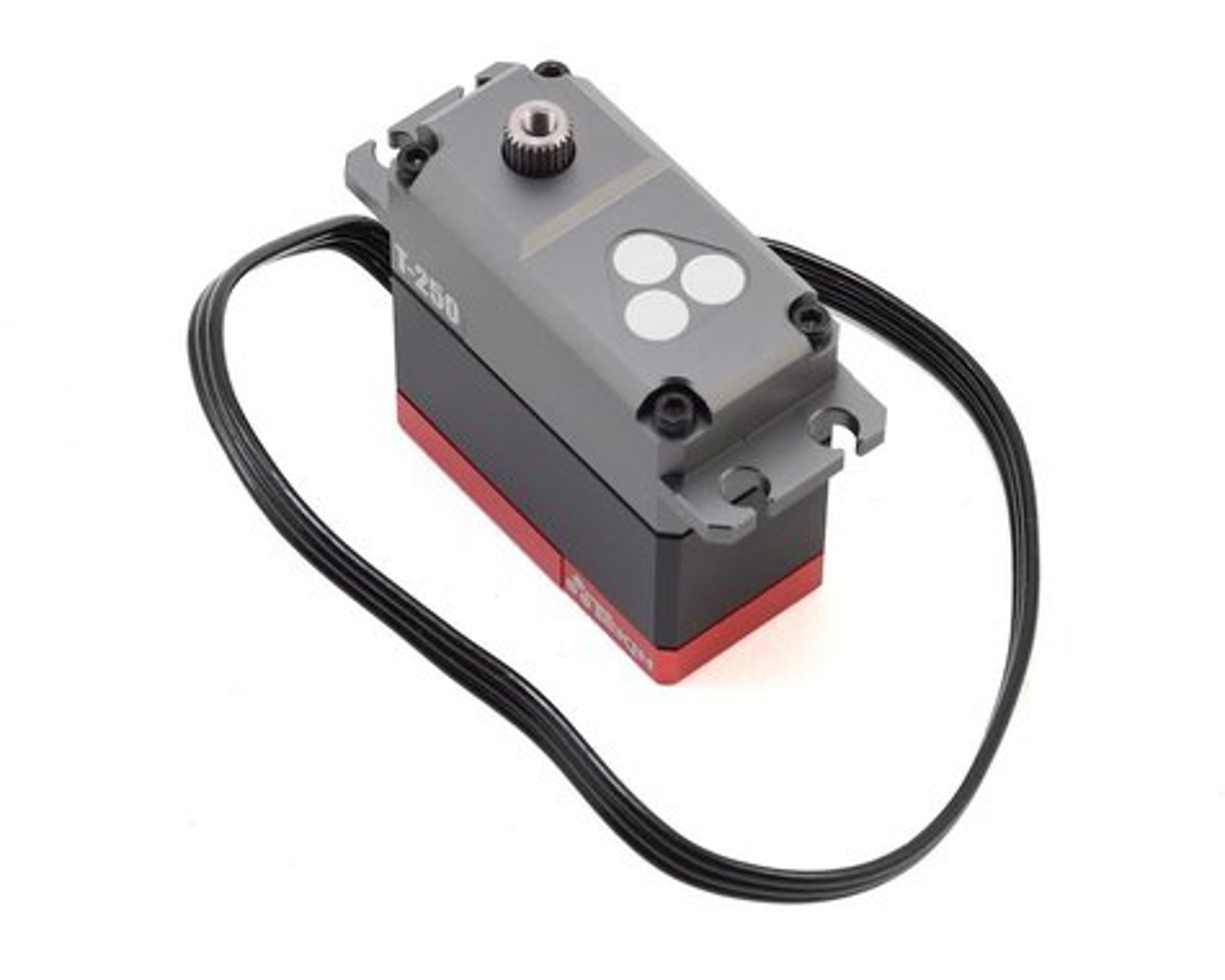

TEKIN - TEKTT1504 - T250 SERVO STD 1/8 SPEED

TEKIN - TEKTT1504 - T250 SERVO STD 1/8 SPEED

Features:

• Digital Magnetic Position Encoder (DPE)
• Specifically Designed for 1/8 and 1/10 Scale Applications
• Included Aluminum 20mm Crowbar HD Clamp Servo Arm
• ?Full Aluminum Servo Housing
• ?Element Proof Design
• ?Precision Cut Full Metal Gears
• ?ABEC5 Ball Bearings
• ?High Voltage Capable
• ?High Torque Coreless Motor
• ?25T Output Spline
• ?Programmable via HotWire PC Interface
• ?Overload Protection Technology
• ?Thermal Protection Circuitry
• ?Low Voltage Alarm
• ?Quiet, Efficient, Cool Operation
• ?HDAC: High Density Copper PCB's
  Tekin Element Proof products are designed to withstand water, snow and mud. Not intended for operation while submerged in liquid.
  requires HotWire sold separately

HotWire Programmable Features:

• Feel - Mild to Aggressive
• ?Speed Limit
• ?Torque (0-100%)
• ?Torque Delay
• ?Direction - Normal / Reverse
• ?Center Point
• ?Travel
• ?Soft Starting Speed & Torque
• ?Max Temp Alarm
• ?Low Voltage Alarm
• ?Over Voltage Alarm
• ?Bind Relief
• ?Fail Safe Speed and Position
• ?Set Custom Servo Name

Specifications:
Size Category: Standard
Type: Digital
Application: 1/10 and 1/8 Scale
Torque: 310 oz-in (22.3kg-cm) @ 8.4V 282 oz-in (20.3kg-cm) @ 7.4V 245 oz-in (17.6kg-cm) @ 6.0V
Speed: 0.07sec/60 deg @ 8.4V 0.08sec/60 deg @ 7.4V 0.09sec/60 deg @ 6.0V
Length: 1.57 in (40mm)
Width: 0.79 in (20mm)
Height: 1.57 in (40mm)
Weight: 2.53 oz (72g)
Bushing Or Bearing: Bearing
Motor Type: Coreless
Gear Type: Metal
Voltage: 4.8V to 8.4V

Tekin Quality Promise
We guarantee our servos to be free from manufacturer defects for 365 days from date of purchase. All items are tested in a controlled environment prior to the packaging process to ensure you receive a top quality Tekin product. We strive to provide the highest grade professional components possible and we appreciate and treat every Tekin user as part of our family. We are RC enthusiasts designing and manufacturing quality products to give our fellow RC enthusiasts the best hobby experience possible.
